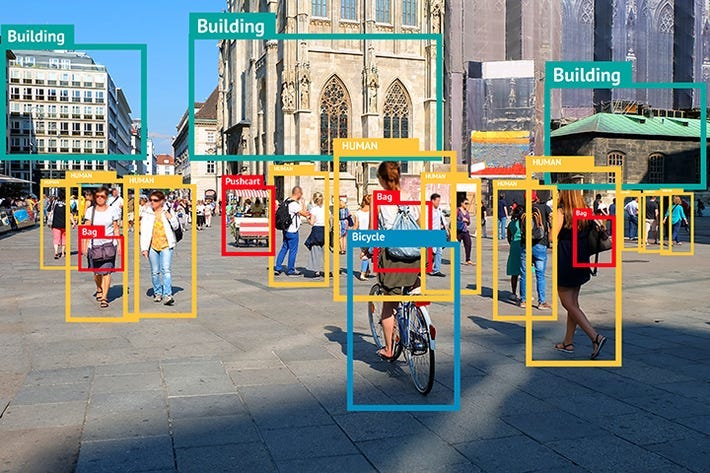

Object detection, a cornerstone of computer vision, goes beyond simple image classification by locating and identifying objects within an image. This article delves into the workings of Region-based Convolutional Neural Networks (R-CNNs), a family of influential object detection algorithms. We'll break down the process into five key steps, illustrating how R-CNNs pinpoint objects and their categories.

1. Start with feature extraction: An image is passed through a convolutional neural network (CNN) to extract features. This could be a network like VGG16 or ResNet.

   features = cnn_backbone(image)

2. Propose regions of interest (ROIs): A separate algorithm like Selective Search or, in the case of Faster R-CNN, a Region Proposal Network (RPN), proposes potential bounding boxes that might contain objects.

   rois = propose_regions(image)

3. ROI pooling: Each ROI from step 2 is projected onto the feature map from step 1. Since ROIs can have different sizes, ROI pooling is used to extract a fixed-size feature vector from each ROI's projection on the feature map.

   roi_features = roi_pooling(features, rois)

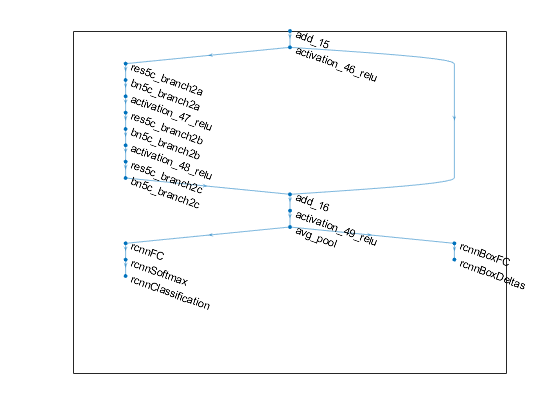

4. Classification and regression: The fixed-size feature vectors are then fed into fully connected layers for:

   • Classification: Predicting the class of the object within the ROI (e.g., cat, dog, car).
   • Regression: Refining the coordinates of the bounding box to better fit the object.

   class_scores, bbox_regressions = fully_connected(roi_features)

5. Output: The final output is a set of bounding boxes with associated class labels and confidence scores.

   final_bboxes = refine_bboxes(rois, bbox_regressions)

In essence: The ROI layer acts as a bridge between the CNN's feature map and the final classification/regression heads, allowing the network to learn object representations from regions of interest within an image.

This Python code implements a simplified version of the Region-based Convolutional Neural Network (R-CNN) for object detection. It uses a pre-trained VGG16 model for feature extraction and includes a custom ROI pooling layer. The code defines functions for region proposal (using a placeholder for now), creating classification and regression heads, and assembling the complete R-CNN model. An example usage demonstrates how to pass an image and proposed regions through the model to obtain class scores and bounding box regressions. Note that this is a basic implementation and requires further development for real-world applications, including integrating a robust region proposal method, non-maximum suppression, and bounding box refinement.

import tensorflow as tf
from tensorflow.keras import layers, models

# --- 1. Feature Extraction ---
def create_cnn_backbone():
  """Creates a CNN backbone for feature extraction (e.g., VGG16)."""
  base_model = tf.keras.applications.VGG16(
      include_top=False,  # Exclude the original classifier
      weights="imagenet",
      input_shape=(224, 224, 3)  # Adjust input shape as needed
  )
  return models.Model(inputs=base_model.input, outputs=base_model.output)

cnn_backbone = create_cnn_backbone()

# --- 2. Region Proposal (Simplified Example) ---
def propose_regions(image):
  """Simplified region proposal (replace with Selective Search or RPN)."""
  # In a real implementation, you'd use a more sophisticated method
  height, width = image.shape[:2]
  return [
      [0.1 * width, 0.2 * height, 0.3 * width, 0.4 * height],  # Example ROI 1
      [0.5 * width, 0.6 * height, 0.7 * width, 0.8 * height]   # Example ROI 2
  ]

# --- 3. ROI Pooling ---
class ROIPooling(layers.Layer):
  def __init__(self, pool_size=(7, 7), **kwargs):
    super(ROIPooling, self).__init__(**kwargs)
    self.pool_size = pool_size

  def call(self, feature_map, rois):
    """
    Performs ROI pooling.

    Args:
      feature_map: The feature map from the CNN backbone.
      rois: A tensor of shape (num_rois, 4) with bounding box coordinates
            in format [x_min, y_min, x_max, y_max].

    Returns:
      pooled_features: A tensor of shape (num_rois, pool_height, pool_width, channels).
    """
    pooled_features = tf.image.crop_and_resize(
        image=feature_map,
        boxes=rois,
        box_indices=tf.zeros(tf.shape(rois)[0], dtype=tf.int32),  # Assuming single batch
        crop_size=self.pool_size
    )
    return pooled_features

roi_pooling_layer = ROIPooling()

# --- 4. Classification and Regression Heads ---
def create_classifier_head(num_classes):
  """Creates the classification and regression heads."""
  inputs = layers.Input(shape=(7, 7, 512))  # Adjust input shape based on ROI pooling
  x = layers.Flatten()(inputs)
  x = layers.Dense(4096, activation='relu')(x)
  x = layers.Dropout(0.5)(x)
  class_scores = layers.Dense(num_classes, activation='softmax', name='class_output')(x)
  bbox_regressions = layers.Dense(4 * num_classes, activation='linear', name='bbox_output')(x)
  return models.Model(inputs=inputs, outputs=[class_scores, bbox_regressions])

classifier_head = create_classifier_head(num_classes=20)  # Example: 20 classes

# --- 5. Combine Components ---
def create_rcnn_model(cnn_backbone, roi_pooling_layer, classifier_head):
  """Creates the complete R-CNN model."""
  image_input = layers.Input(shape=(224, 224, 3))  # Adjust input shape as needed
  features = cnn_backbone(image_input)
  rois = layers.Input(shape=(None, 4), dtype=tf.float32)  # Variable number of ROIs
  roi_features = roi_pooling_layer(features, rois)
  class_scores, bbox_regressions = classifier_head(roi_features)
  return models.Model(inputs=[image_input, rois], outputs=[class_scores, bbox_regressions])

rcnn_model = create_rcnn_model(cnn_backbone, roi_pooling_layer, classifier_head)

# --- Example Usage ---
# ... (Load and preprocess image) ...
image = tf.random.normal(shape=(1, 224, 224, 3))  # Example image
rois = propose_regions(image[0])
rois = tf.constant([rois], dtype=tf.float32)  # Convert to tensor

class_scores, bbox_regressions = rcnn_model([image, rois])

# ... (Process outputs: Non-max suppression, bounding box refinement, etc.) ...

Explanation:

1. Feature Extraction: We create a cnn_backbone using a pre-trained VGG16 (you can replace it with other architectures).
2. Region Proposal: The propose_regions function is a placeholder. In a real application, you would integrate Selective Search or a Region Proposal Network (RPN).
3. ROI Pooling: The ROIPooling layer extracts fixed-size feature vectors from the feature map for each ROI.
4. Classification and Regression Heads: The classifier_head takes the pooled features and predicts class probabilities and bounding box refinements.
5. Model Assembly: The create_rcnn_model function combines all the components.

Important Notes:

• This code provides a basic structure. You'll need to implement or integrate:
  • A robust region proposal method (Selective Search or RPN).
  • Non-maximum suppression (NMS) to filter overlapping bounding boxes.
  • Bounding box refinement using the regression outputs.
• Training this model requires labeled data with bounding box annotations.
• Consider using a deep learning framework like TensorFlow or PyTorch for efficient implementation and training.

General R-CNN Concepts:

• Evolution of R-CNNs: R-CNN was the first in a line of improvements (Fast R-CNN, Faster R-CNN, Mask R-CNN) that aimed to increase speed and accuracy. Understanding the limitations of R-CNN (like being slow due to separate proposal generation and feature extraction) helps appreciate the later advancements.
• Region Proposal Methods:
  • Selective Search: A classic computer vision technique that uses image segmentation and hierarchical grouping to propose regions. It's computationally expensive compared to learned methods.
  • Region Proposal Network (RPN): Introduced in Faster R-CNN, this is a CNN trained to predict object proposals directly from the feature map, making the process much faster.
• Non-Maximum Suppression (NMS): Essential for object detection, NMS filters out redundant bounding boxes that overlap significantly, keeping only the most confident ones.
• Applications: R-CNNs have paved the way for numerous applications like self-driving cars, medical image analysis, and security systems.

Code Specific Notes:

• Placeholders: The code uses simplified placeholders for region proposal (propose_regions) and assumes a fixed input image size. In a real application, these need to be replaced with appropriate implementations and handle variable image sizes.
• ROI Pooling Implementation: The provided ROIPooling layer is a basic implementation using tf.image.crop_and_resize. More sophisticated implementations might use bilinear interpolation or other techniques for better accuracy.
• Training: The code snippet only shows the model definition. Training an R-CNN requires a large dataset with bounding box annotations and involves optimizing both the CNN backbone and the classification/regression heads.
• Framework Choice: While the code uses TensorFlow, you can implement R-CNNs in other frameworks like PyTorch. Each framework offers different tools and abstractions for building and training deep learning models.

Further Exploration:

• Understanding the differences between R-CNN, Fast R-CNN, and Faster R-CNN is crucial.
• Explore different CNN architectures for the backbone (e.g., ResNet, Inception).
• Dive deeper into the implementation details of ROI pooling and NMS.
• Look into advanced object detection architectures like YOLO and SSD.

This article describes a common approach to object detection in images using ROI (Region of Interest) pooling. Here's a breakdown:

1. Feature Extraction: A pre-trained Convolutional Neural Network (CNN) like VGG16 or ResNet analyzes the input image and extracts high-level features.

2. Region Proposal: An algorithm like Selective Search or a Region Proposal Network (RPN) identifies potential regions within the image that might contain objects. These regions are represented as bounding boxes.

3. ROI Pooling: Each proposed region is projected onto the feature map generated in step 1. Since these regions can have varying sizes, ROI pooling extracts a fixed-size feature vector from each region's projection. This ensures consistent input for the subsequent classification and regression tasks.

4. Classification and Regression: The fixed-size feature vectors are fed into fully connected layers to:

• Classify: Predict the object category within each region (e.g., car, person, dog).
• Regress: Refine the coordinates of the bounding boxes to better fit the detected objects.

5. Output: The final output consists of refined bounding boxes, each associated with a predicted class label and a confidence score.

Key Takeaway: ROI pooling acts as a crucial link between the CNN's feature extraction capabilities and the final object detection tasks. It allows the network to focus on specific regions of interest within the image, enabling efficient and accurate object detection.

In conclusion, R-CNNs and their variants offer a powerful framework for object detection by combining feature extraction, region proposal, and ROI pooling. This approach allows for the identification and localization of objects within an image, paving the way for advancements in various fields. While the provided code offers a basic implementation, understanding the underlying principles and exploring further developments in region proposal methods, pooling techniques, and advanced architectures is crucial for building robust and efficient object detection systems.
