Accessing the Kubernetes dashboard requires proper authentication to ensure the security of your cluster. This involves using credentials stored in your kubeconfig file, such as usernames and passwords, tokens, or client certificates. There are various methods to access the dashboard, including using kubectl proxy for local development or leveraging token-based authentication for more secure access. However, it's crucial to prioritize security and avoid exposing the dashboard directly to the internet. Consider using VPNs, Ingress controllers with authentication, or other security measures to protect your cluster. Disabling authentication, while possible in some older versions, is highly discouraged for production environments. If you encounter login issues, double-check your token's validity and your kubeconfig context. If the dashboard is not found, ensure it's installed and running in the correct namespace. Always prioritize security when working with your Kubernetes cluster and its dashboard.

To access the Kubernetes dashboard, you need a way to authenticate. Here's a breakdown:

Understanding Authentication

The dashboard needs credentials from your kubeconfig file. This could be:

• Username and Password: Less common in modern setups.
• Token: A string of characters that acts like a temporary password.
• Client Certificate: Used for more secure, automated access.

Common Access Methods

1. Kubectl Proxy:

   • Start the proxy:

     kubectl proxy

   • Access the dashboard: Open your web browser and go to http://localhost:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard:/proxy/.

2. Token-Based Authentication:

   • Get the dashboard's service account token:

     kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get sa kubernetes-dashboard -o jsonpath="{.secrets[0].name}") | grep token: | awk '{print $2}' | base64 -d

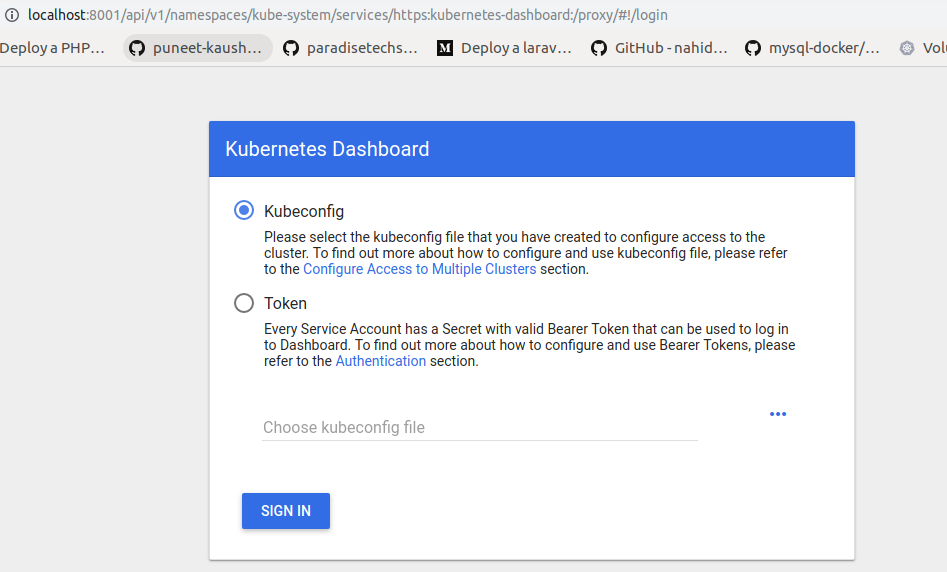

   • Use the token to log in when prompted by the dashboard.

Important Considerations

• Security: Exposing the dashboard directly to the internet is risky. Use VPNs, Ingress controllers with authentication, or other security measures.
• Skip Login (Not Recommended): While possible in some older dashboard versions, disabling authentication is highly discouraged for production environments.

Troubleshooting

• Login Issues: Double-check your token, ensure it hasn't expired, and verify your kubeconfig context.
• Dashboard Not Found: Make sure the dashboard is installed and running in the kubernetes-dashboard namespace.

Remember, always prioritize security when working with your Kubernetes cluster and its dashboard.

This code provides examples for accessing the Kubernetes dashboard using kubectl proxy and token-based authentication. It includes instructions for starting the proxy, obtaining the dashboard service account token, and accessing the dashboard URL. The code also highlights important security considerations and troubleshooting tips for common issues.

This guide provides code examples for accessing the Kubernetes dashboard using different authentication methods.

Prerequisites:

• A running Kubernetes cluster.
• kubectl configured to interact with your cluster.
• Kubernetes Dashboard installed (see https://kubernetes.io/docs/tasks/access-application-cluster/web-ui-dashboard/).

This method is suitable for quick access from your local machine.

# Start the proxy
kubectl proxy

# Open the dashboard in your browser
xdg-open http://localhost:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard:/proxy/

Note: Replace xdg-open with the appropriate command for your operating system (e.g., open for macOS).

This method is more secure and suitable for remote access.

# Get the dashboard service account token
DASHBOARD_TOKEN=$(kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa kubernetes-dashboard -o jsonpath="{.secrets[0].name}") -o jsonpath="{.data.token}" | base64 -d)

# Print the token (use this to log in to the dashboard)
echo $DASHBOARD_TOKEN

Note:

• You will be prompted for this token when you access the dashboard URL.
• The token has an expiration time. You might need to generate a new token after it expires.

• Security: Never expose the dashboard directly to the internet without proper security measures like VPNs, Ingress controllers with authentication, or network policies.
• Disabling Authentication: While possible in some older versions, disabling authentication is highly discouraged for production environments.

• Login Issues: Double-check your token, ensure it hasn't expired, and verify your kubeconfig context.
• Dashboard Not Found: Make sure the dashboard is installed and running in the kubernetes-dashboard namespace.

Remember to prioritize security when working with your Kubernetes cluster and its dashboard.

Kubeconfig and Contexts:

• Your kubeconfig file can store configurations for multiple clusters. Make sure you've selected the correct context using kubectl config use-context <context-name> before interacting with the dashboard.
• If you're using a managed Kubernetes service (like EKS, GKE, AKS), they often provide ways to download a pre-configured kubeconfig file.

Token Expiration:

• Tokens have a limited lifespan. When a token expires, you'll need to generate a new one to access the dashboard.
• The token expiration time can vary depending on your cluster's configuration.

Alternative Authentication Methods:

• OpenID Connect (OIDC): Integrates with identity providers like Google, Azure AD, etc., for centralized authentication.
• Role-Based Access Control (RBAC): Fine-grained control over which users/services can access the dashboard and what actions they can perform.

Best Practices:

• Use a Dedicated Namespace: Install the dashboard in a dedicated namespace (e.g., kubernetes-dashboard) to isolate its resources.
• Regular Updates: Keep your Kubernetes cluster, dashboard version, and authentication mechanisms up-to-date to benefit from the latest security patches.
• Monitoring and Auditing: Implement monitoring and auditing tools to track dashboard access and detect any suspicious activity.

Beyond the Dashboard:

• The Kubernetes dashboard is a useful visualization tool, but consider exploring other tools like kubectl, k9s, Rancher, or cloud-specific consoles for more advanced management and monitoring capabilities.

Remember: Security is paramount. Never expose the Kubernetes dashboard publicly without robust authentication and authorization mechanisms in place.

Important Notes:

• Always prioritize security when accessing the Kubernetes dashboard.
• Use VPNs, Ingress controllers with authentication, or other security measures for external access.
• Regularly check for dashboard updates and security best practices.

Accessing the Kubernetes dashboard provides a visual way to manage your cluster, but requires secure authentication methods. Whether using kubectl proxy for local development or token-based authentication for remote access, prioritize security and avoid exposing the dashboard directly to the internet. Consider VPNs, Ingress controllers with authentication, or other security measures. Regularly update your cluster and dashboard, and explore alternative tools like kubectl or k9s for advanced management. Remember, a secure Kubernetes environment is a priority, and understanding how to safely access and manage your dashboard is crucial for maintaining that security.
